TKSTAR TK906 bicycle GPS tracker The device is designed by the manufacturer for tracking bicycles, electric bicycles, or possibly wheelchairs based on its design (light) and mounting. Basic services: location tracking, alerts, long standby time. Placement as a rear light. Communication is done via mobile networks using a SIM card through SMS or tracking software. The device continuously updates its position data, with a measurement accuracy of 5 meters. More information
0
$
(0
$ + VAT)
RRP price: 99,6 $
-
In stock8 pcs
-
Personal receiptFree
-
Expected delivery-
-
Guarantee24 months
-
Home delivery-
-
Location of goodsHungary
Device description

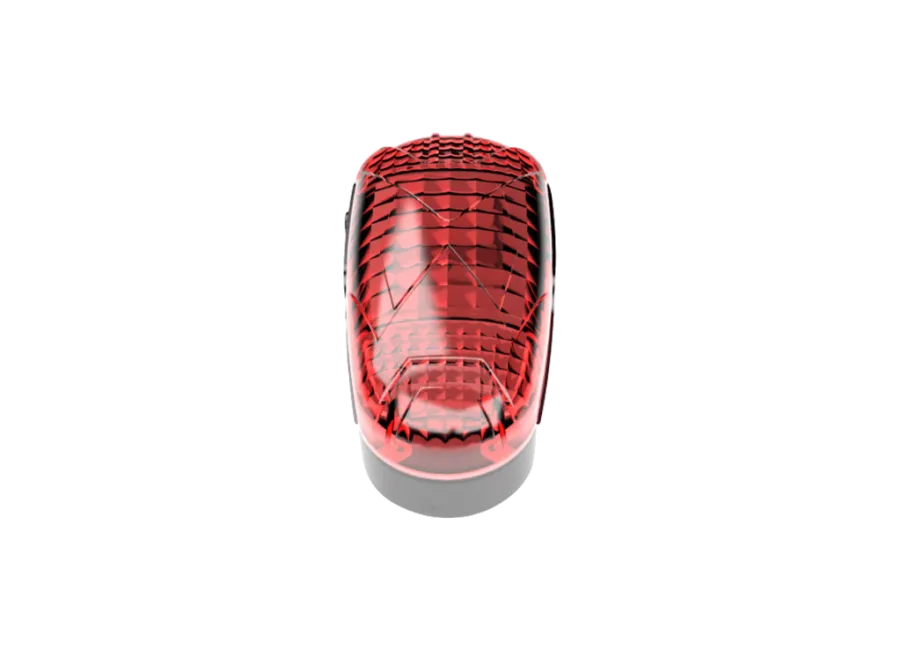

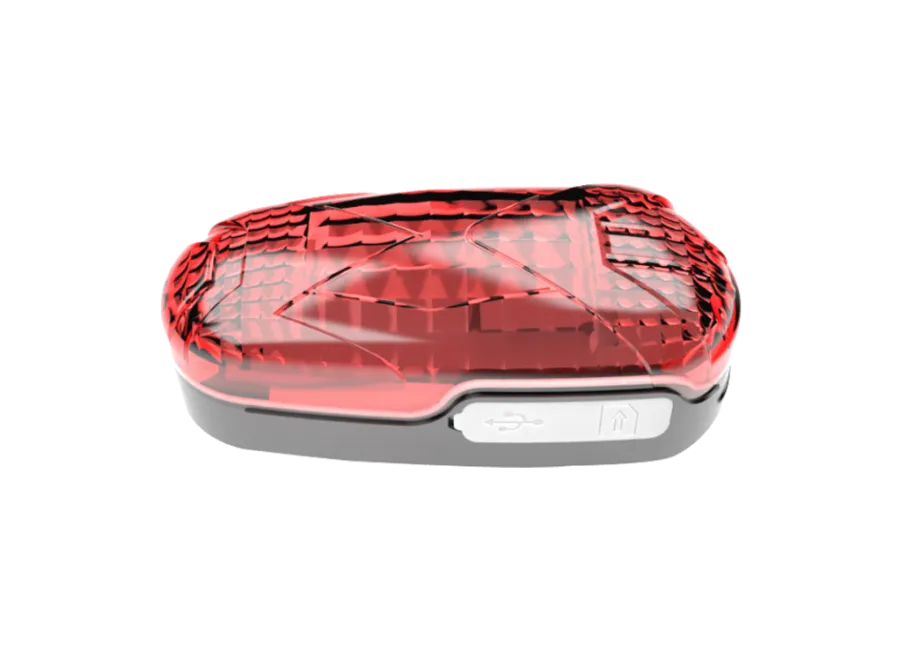

JUNEO TK906 bike gps tracker
The device combines all functions of precise location tracking and vehicle monitoring, related alerts, and data services. It supports internet data transmission and communication with data collection and processing systems. The device has an internal battery providing 25 days of standby time. Its operation is based on the GSM network and satellite positioning and can be monitored via SMS messages or an internet application.
Services, features
- Cooperation with multiple satellite systems (GPS, BEIDOU)
- Communication between the device and its owner via GSM 2G networks using a micro SIM card
- Operational settings, position query via SMS or software
- Customizable position measurement interval
- Built-in gyroscope
- Internal high-sensitivity satellite receiver antenna
- LED indicators for operation monitoring
- Sleep and wake modes
Alerts
- Movement
- Low battery level
- Speed limit exceeded
- POI digital fence exit, arrival

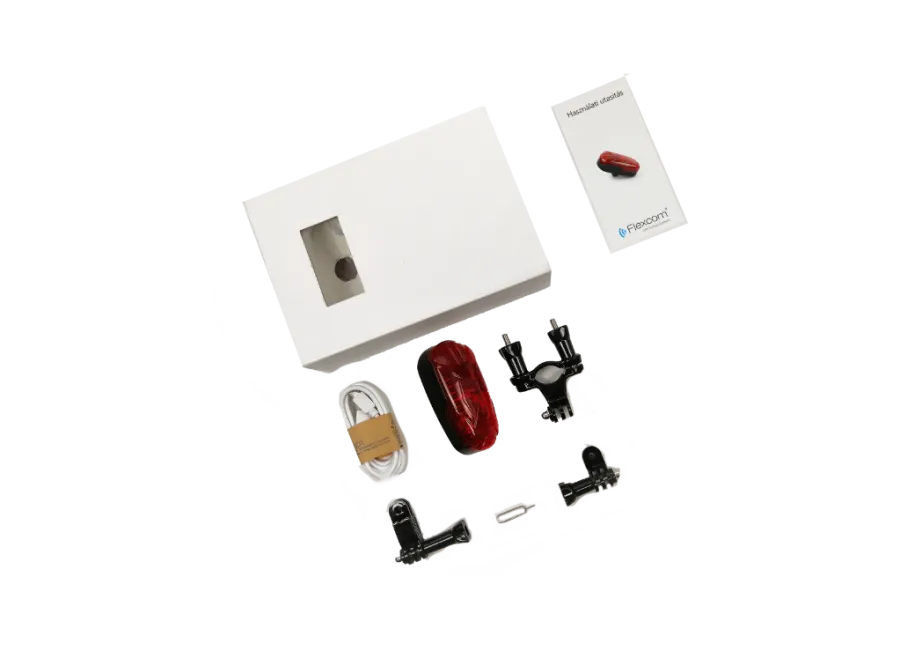

Package contents
- TKSTAR TK906 bicycle GPS tracker
- USB charging cable
- Mounting clamp
- SIM pin
- SIM adapter
- Installation guide
Terms of use
For normal operation, active connection with satellite positioning systems and mobile networks is required. These ensure data collection and transmission, as well as communication with the owner's phone or the central data collection and processing system when using tracking software. The device communicates through mobile networks using the installed (replaceable) SIM card.
Operational regions
The device is compatible with GSM networks operating in the following regions:
- 2G: Worldwide
Purchase options
- If you only purchase the device (without software subscription), it will be provided with factory settings. You are responsible for obtaining the necessary SIM card, its settings, and its operation (recharge, annual data reconciliation).
- If you purchase the device along with a software subscription but no SIM card, the device will be provided already registered in our software and ready for operation. However, obtaining, setting, and operating the SIM card is still your responsibility.
- If you purchase the device, software subscription, and SIM card from us, the device and SIM card will be provided ready to work with the software, and we will ensure the continuous operation of the card – you will have no further tasks in this regard.
In case of a software subscription, if you wish to use our SMS alert service in addition to email notifications, purchase an SMS credit card, which can be found in our webshop among products related to the device.
This device operates exclusively on the 2G network. This network has already been discontinued by some GSM providers in certain countries (e.g., Switzerland) and is expected to be uniformly shut down across Europe by December 31, 2025. For a specific country or region, it is advisable to obtain local information about the current situation, but if you are planning for the long term, we recommend choosing a device that operates on the 4G network.
The textual content of the page has been machine translated from Hungarian - therefore, translation errors may occur.
The descriptions and images of the devices on the website are based on information published by the manufacturer, which may not always be accurate and error-free. The manufacturer reserves the right to change certain parameters of the product or its packaging without prior notice - updating of this information on our website takes place after detecting and evaluating these changes.
View full description CloseParameters
| Communication | |
|---|---|
| 2G GPRS | yes |
| 2G Operating region: Africa | yes |
| 2G Operating region: Asia | yes |
| 2G Operating Region: Asia Pacific | yes |
| 2G Operating Region: Australia | yes |
| 2G Operating region: Europe | yes |
| 2G Operating Region: Middle East | yes |
| 2G Operating Region: North America | yes |
| 2G Operating region: South America | yes |
| 2G Operating Region: World | yes |
| Accuracy | 5 meter |
| AGPS | yes |
| GNSS channel number | 32 |
| GPS | yes |
| GPS module name | QUECTEL MC25 |
| GSM 1800 | yes |
| GSM 1900 | yes |
| GSM 850 | yes |
| GSM 900 | yes |
| GSM module | QUECTEL MC25 |
| Sensitivity | -159 dBm |
| SIM card normal | yes |
| SMS | yes |
| Sensor | |
| Accelerometer | yes |
| Speed sensor | yes |
| Energy | |
| Backup battery capacity | 1800 mAh |
| Backup battery voltage | 3,7 V |
| External power source | yes |
| Input (DC) voltage maximum | 5 V |
| Input (DC) voltage minimum | 5 V |
| Internal battery | yes |
| Power consumption Nominal | 50 mA |
| Power consumption Online Sleep | 2,5 mA |
| Operation | |
| Battery operating time | 32 hour |
| Battery standby time | 648 hour |
| Cold start | 32 secundum |
| Data upload frequency is maximum | 43200 secundum |
| GPS | Yes |
| GPS Sleep | yes |
| GPS | yes |
| Hot Start | 1 secundum |
| Manual geofencing | yes |
| Minimum data upload frequency | 10 secundum |
| Operating humidity maximum | 95 % |
| Operating humidity minimum | 5 % |
| Operating temperature without battery maximum | 55 Celsius |
| Operating temperature without battery minimum | -20 Celsius |
| Set language | yes |
| Warm start | 5 secundum |
| Certificate | |
| CE/RED | yes |
| RoHS | yes |
| Accessory | |
| Charging cable | yes |
| Sim card ejector pin | yes |
| SIM pin | Yes |
| Suspension clamp with screw | yes |
| Design | |
| Color | black |
| Height | 28 milimeter |
| Ingress Protection Rating | 65 |
| Length | 70 milimeter |
| Material | plastic |
| Weight | 80 gram |
| Width | 40 milimeter |
| Alarm | |
| Digital fence entry alarm | yes |
| Digital fence exit alarm | yes |
| Displacement alarm | yes |
| Low battery alarm | yes |
| Quick speed alarm | yes |
| Interface | |
| GPS LED | yes |
| GSM LED | yes |
| Internal GNSS antenna | yes |
| Internal GPS antenna | yes |
| Internal GSM antenna | yes |
| USB micro | yes |
| Built-in function | |
| GSM signal strength measurement | yes |
| Data storage | |
| Internal memory | 2 Megabyte |
| Setting option | |
| Via Internet | yes |
| Via SMS | yes |
Tracking Software Application
The Flexcom tracking software provides services that allow you to determine at any moment where the tracked object (vehicle, machinery, person, or animal) is located, where it is heading, what route it has taken, when and where it stopped or started. All these can be tracked on an interactive map, and related information can also be displayed and queried in text form - even retrospectively, for any defined period. In addition to basic functions, POI points can also be added, and alerts can be set.
The software works with various types of tracking devices, from devices designed and installed for tracked objects to specially designed watches, collars, and other portable devices developed for people or animals. Neither special expertise nor unique computer software is required to operate the devices and use the map service - any average equipped computer, tablet, or smartphone with an internet connection is suitable.
Highlighted Features
Do you want to achieve a truly high level of GPS tracking?
-
Map Display
You can monitor your devices on various types and scales of maps, check their status and surroundings.
-
Real-time Tracking
Continuously track and monitor the movement of your devices in real-time and get information about their current location.
-
Review Routes Afterwards
Review the routes previously taken by your devices: road sections, stopping points, and related data. You can also create graphical analyses of these.
-
Device Information
Up-to-date information about the status, operating conditions of the devices, and the physical condition of their carriers.
-
Alerts
Receive immediate notifications via email or SMS about events related to the device or its carrier, or its surroundings - such as movement, POI zone crossing, towing, ignition, low battery level, SOS message, etc.
-
POIs
Add important points and areas to the map for you. You can set alerts or display their data in reports (e.g., logbook) in the system.
Demo Videos
- Customer Management
System Access
- Map Usage
Map Types and Functions
The map is a core element, serving as the "background" of the system. During tracking, several map types can be used, such as versions specialized for road networks, hiking, or cycling paths in the case of Open Street Map.
- Device Management and Tracking
Retrieving Device Information
After successful login, the system displays our devices on the map. In addition to real-time tracking of their movements, selecting any device will provide detailed information:
- About the device's position (coordinates and address)
- About the device and network characteristics (e.g., battery level, GSM, and satellite connections)
- About the physical (e.g., fuel, battery, odometer) or health conditions (e.g., blood pressure, pulse, body temperature) of the vehicle or person carrying the device.
Displaying RouteWith the tracking system, not only can we see current events, but past events related to the devices and their carriers can also be reconstructed. The route of a selected device for a specified period can be retrieved. The system displays the route and related event points on the map and provides detailed information: how long it took to travel each segment, the speed, distance covered, waiting points, and the duration of stops.
Device SettingsWe can set how the central system manages our devices and the incoming data. Devices can be grouped, labeled, and color-coded on the map. The system can be configured with measurement units (e.g., kilometers or miles), how it detects device movements, and which time zone to use.
AlertsThe system can send notifications (alerts) regarding certain events detected by or involving the tracking devices. Alerts can be set up for each device. For smartwatches, a special alert function is the SOS call and message, which the devices execute by calling preset phone numbers and sending emails and/or SMS messages.
CommandsThe entire system consists of the tracking devices and the tracking software. As technical equipment, the devices have their own operations, such as determining position frequency, contact numbers, alarm clock, or time zone settings, issuing sound signals to locate, remote shutdown, etc. These settings and actions can be executed through the software's Command Sending feature.
ReportsBesides the graphical map-based and directly related textual data, complex reports can be created using the Reports feature. A frequently used report, for example, when tracking vehicles, is the trip log.
- Managing POIs
Adding POIs
POIs (Points of Interest) are places of significance that we want to mark on the map. A POI can be a point (e.g., a gas station or store) or an area (e.g., a plot of land or field). Accordingly, point-based and area-based POIs can be added to the tracking system, and the extent of the latter can be drawn. Alerts (notifications) can be linked to the POIs for when a tracking device reaches or leaves them.
- Managing Events
Events and Their Registration. Using the Event Log.
Events are continuously occurring in the tracking system. Devices detect movement, stops, and physical impacts. The processing system analyzes the incoming data and determines related events, which are logged in the event log. The log can be viewed by clients and filtered or queried based on various criteria.
